New Feed Production Plant 20+20 Tons|h
About This Project

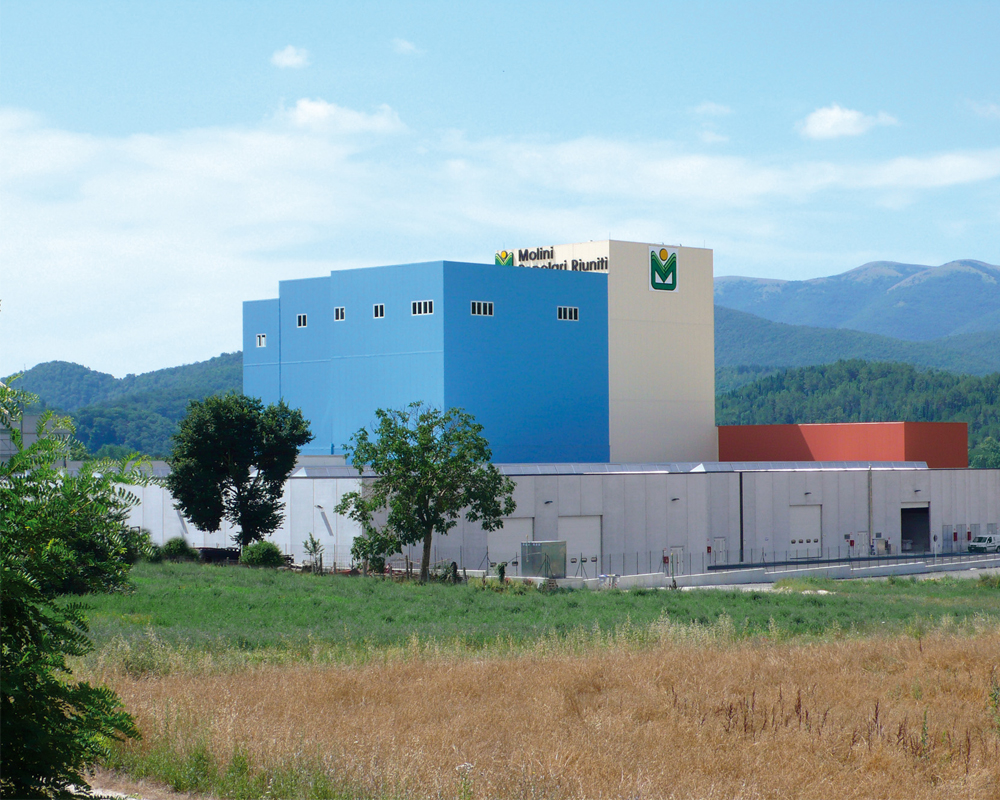

PERUGIA, ITALY
A new feed production plant equipped with N°.2 completely independent production lines, each with a 20 t/h capacity, for the production of livestock feed and grain mixture.

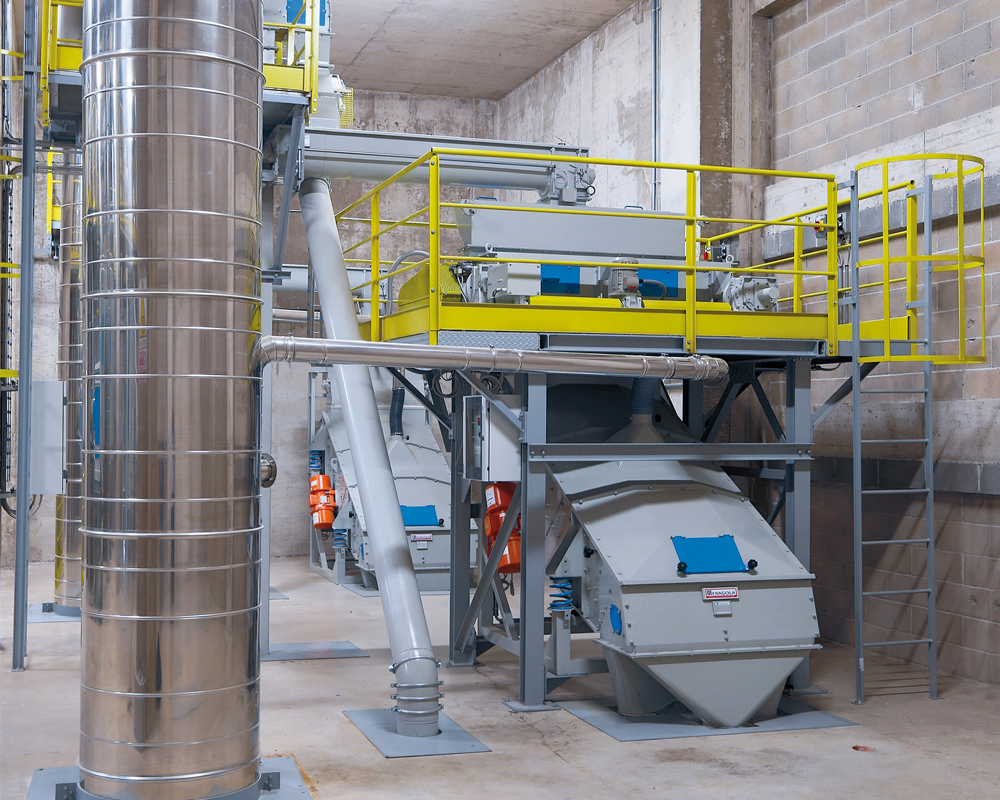

• Raw material intake by trucks with N°.2 pits and cleaning line, capacity of 70 t/h.

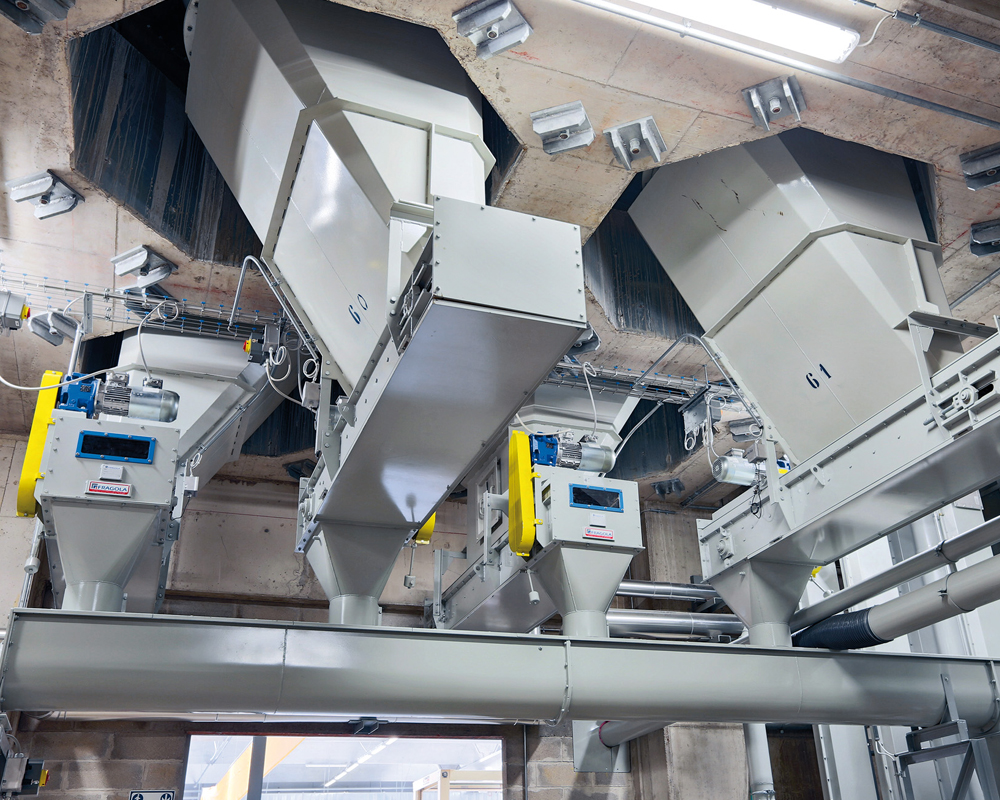

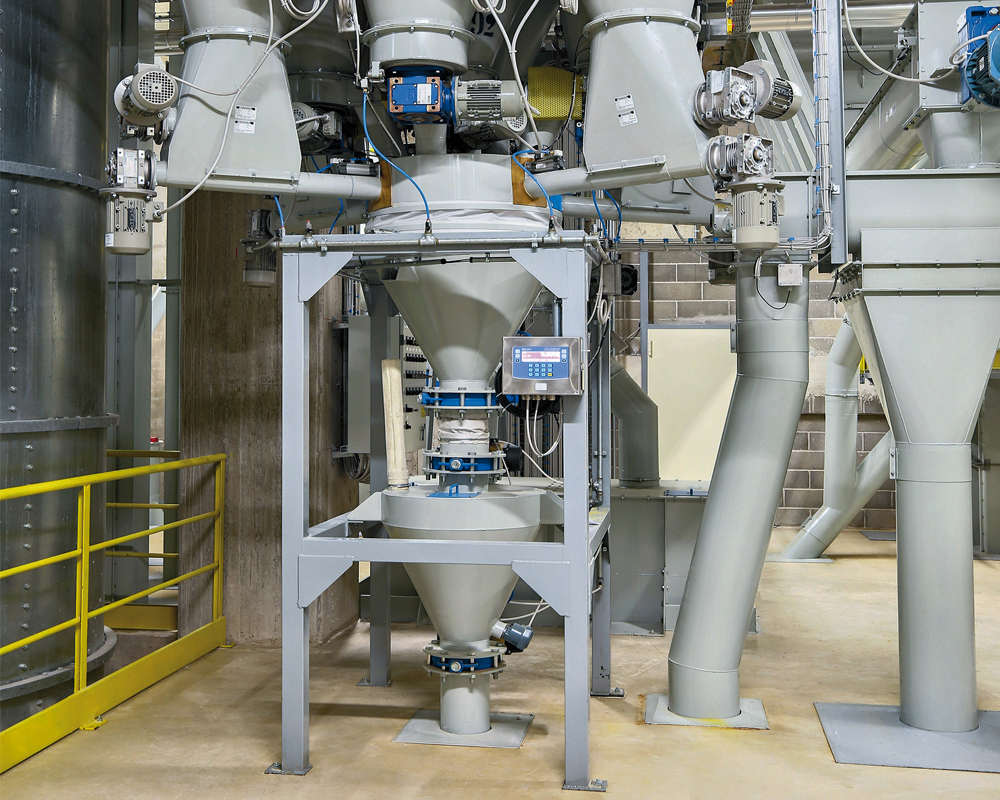

• Cereal and meal storage and batching, with a total capacity of 2500 t, in N°.42 silos and N°.4 weighing scales each with a 2 t capacity.
• Supplement batching in big bags, equipped with N°.2 weighing scales.

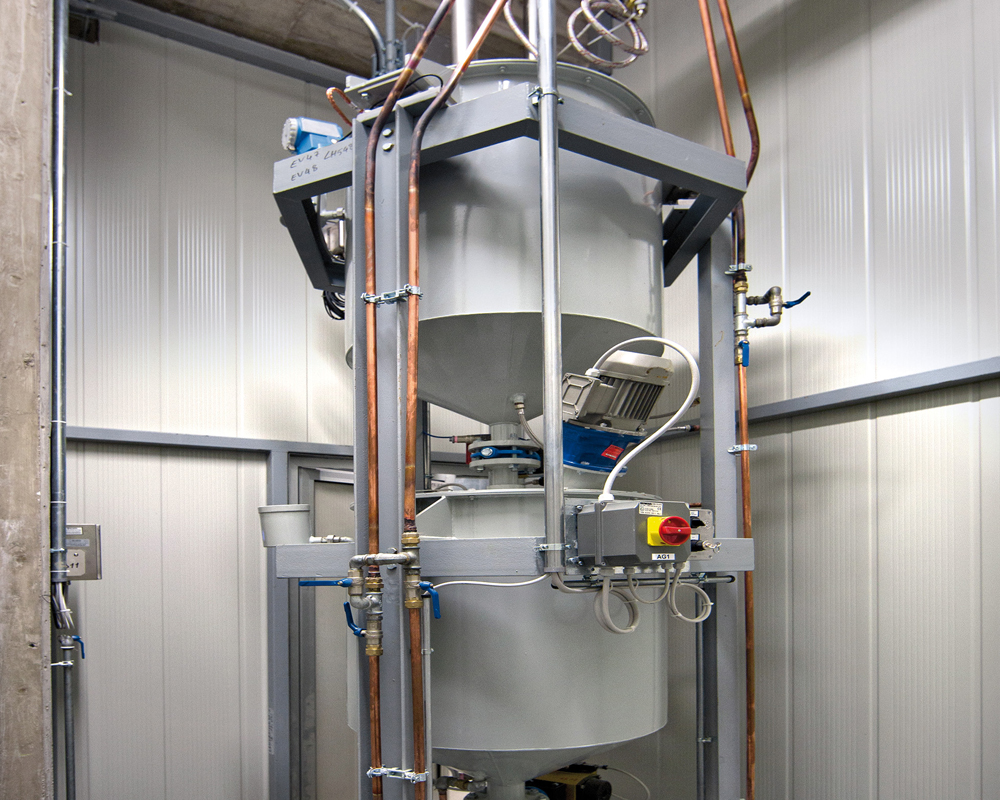

• Micro-ingredient batching, equipped with N°.1 weighing scale.
• N°.7 liquid storage tanks, overall capacity of 170 m3 with 1 batching scale and transfer lines to the continuous mixer and to the horizontal mixer.

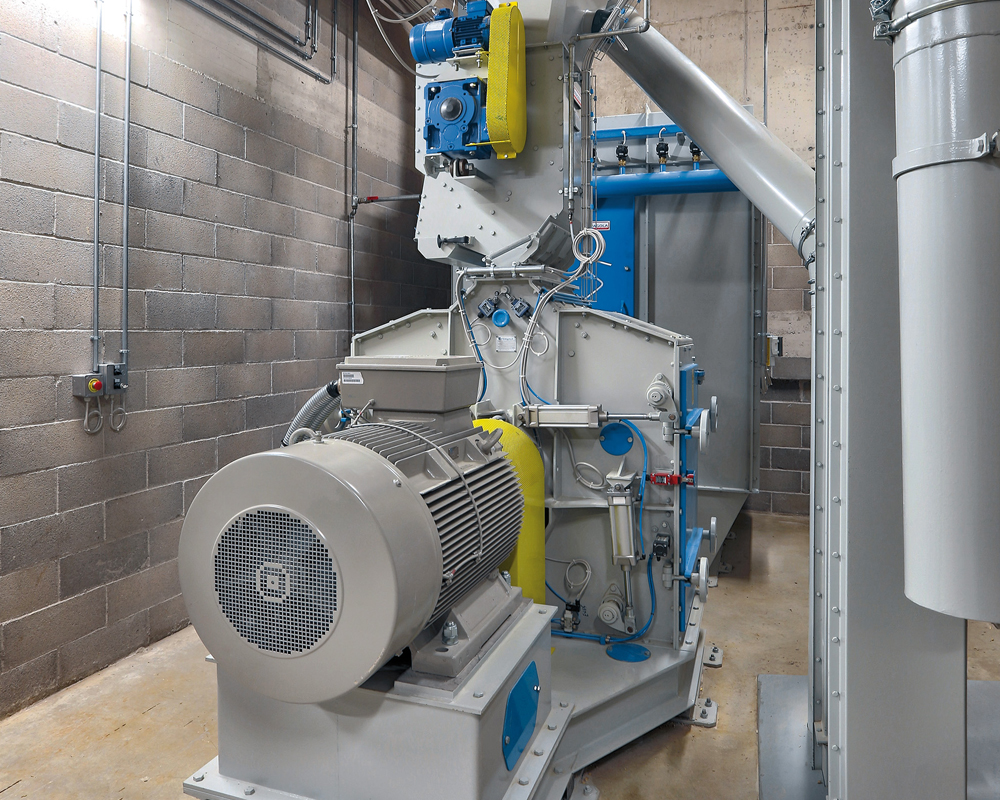

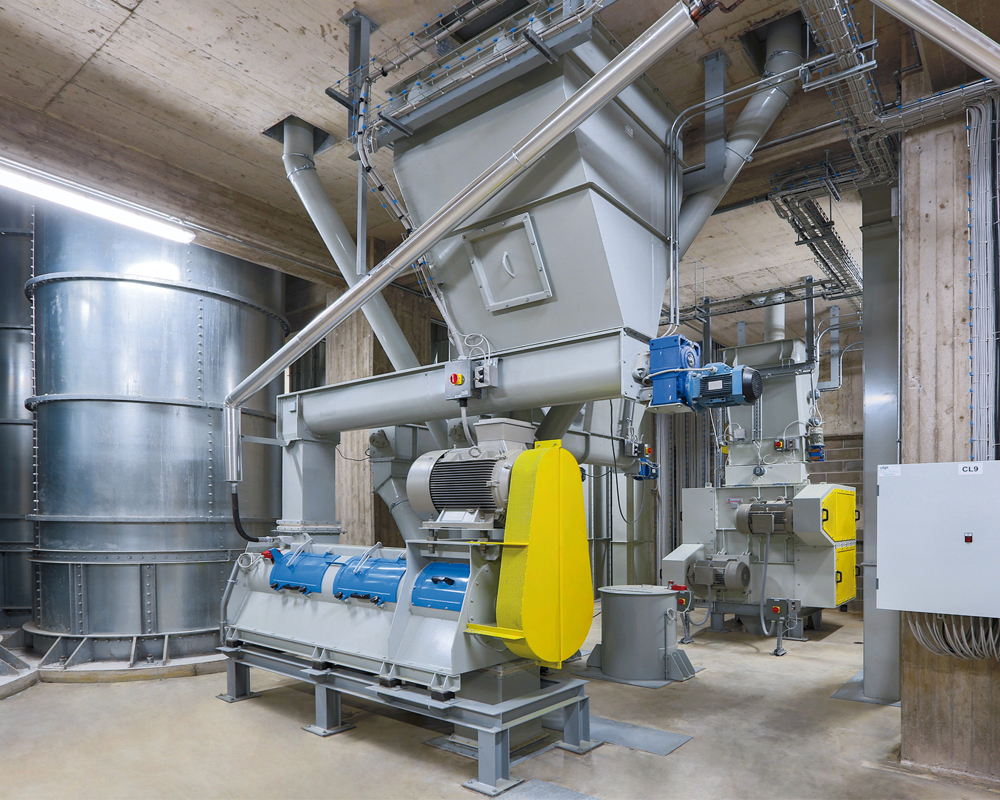

• Grinding line with hammer mill complete with sieves that can be rapidly changed while the machine is running, 160 Kw installed power, with inverter-run electric motor.

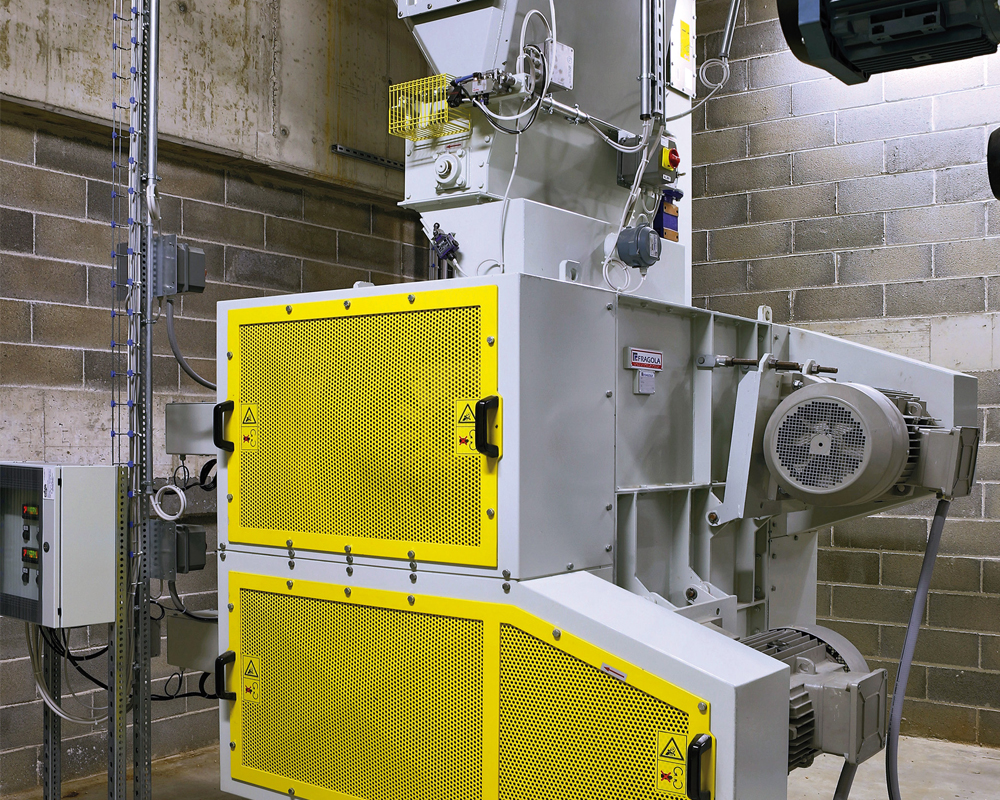

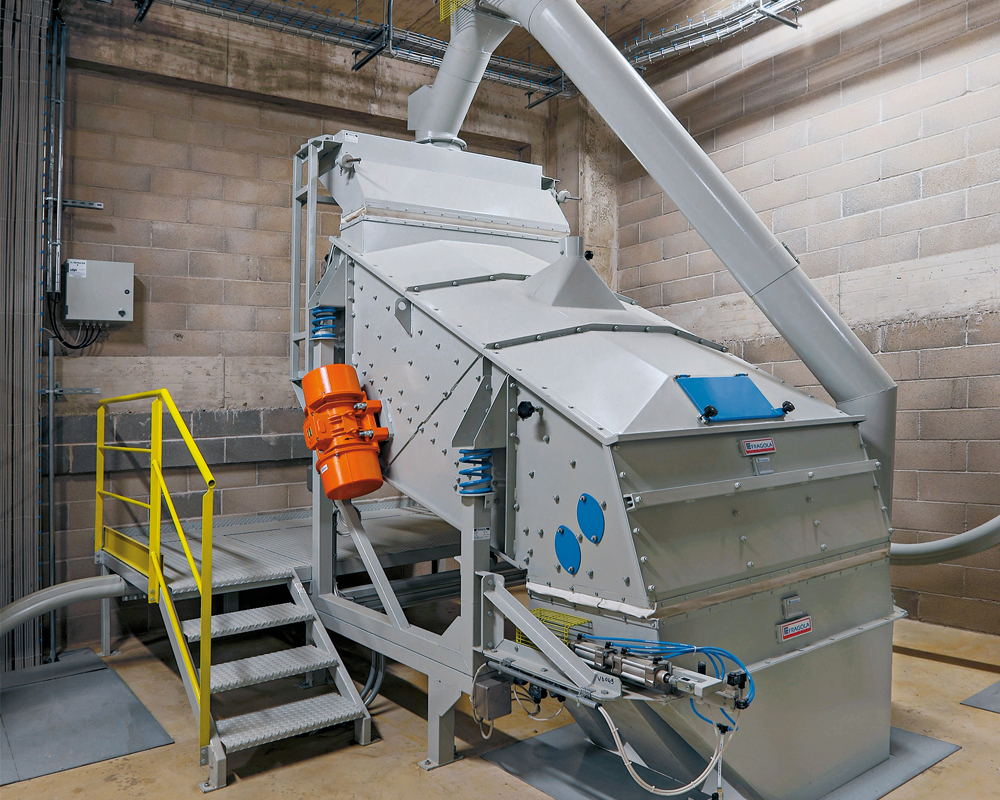

• Grinding line with double roller mill, equipped with vibrating screens for selecting the grinded product.
• N°.2 mixing lines with horizontal paddle mixers, with a working capacity of 5 m3 each.
• N°.1 pelleting line, capacity of 10÷12 t/h, fitted with a crumbler roller mill with remote roller adjustment.
• N°.1 pelleting line, capacity of 10÷12 t/h, with product sanitation. Space projected for a 3rd pelleting line.

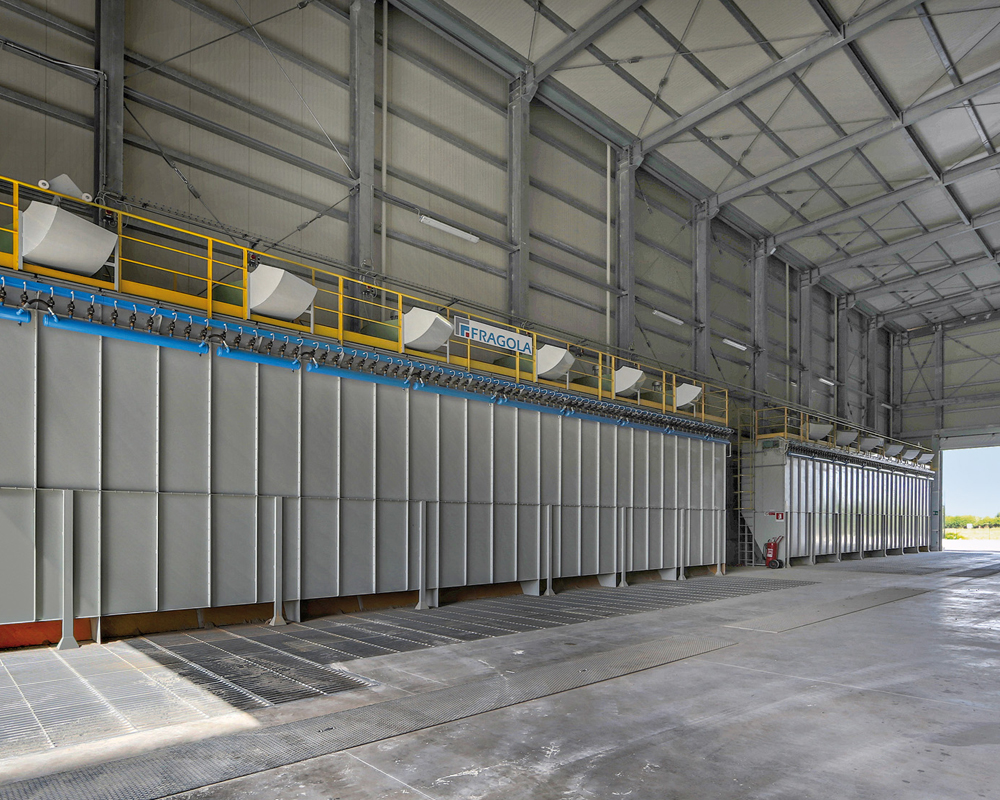

• Finished product storage, in N°.24 silos, with overall capacity of 545 t.
• N°.2 automatic bagging and palletizing production lines, N°.1 big bag filling and weighing line.
• All 24 silos can simultaneously feed the 3 bagging lines and the bulk outloading station with the possibility of screening and weighbridge.

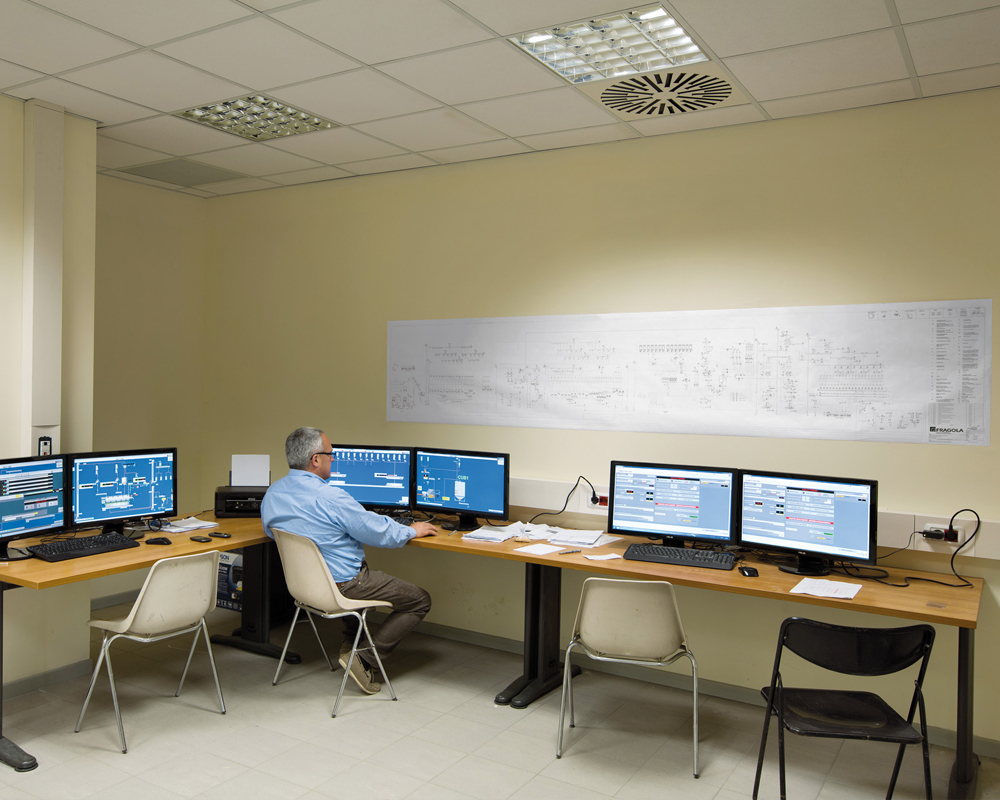

• Fully automatic management and supervision of the whole plant by PC-PLC using leading technologies, lot traceability, and tele-assistance for remote control.
